Revitalization of the Majestic Chestnut: Chestnut Blight Disease



Contributed by
Sandra L. Anagnostakis
Connecticut Agricultural Experiment Station
Box 1106
New Haven, CT 06504
Phone 203-974-8498
Sandra.Anagnostakis@po.state.ct.us

Anagnostakis, S.L. 2000. Revitalization of the Majestic Chestnut: Chestnut Blight Disease. APSnet Features. Online. doi: 10.1094/APSnetFeature-2000-1200


Figure 1. An American chestnut stem with a chestnut blight canker. (Click image for larger view and more information).

Chestnut blight, or chestnut bark disease, is caused by an introduced fungus, Cryphonectria parasitica (Murrill) Barr, (formerly Endothia parasitica [Murrill] Anderson & Anderson). The fungus enters wounds, grows in and under the bark (Fig. 1), and eventually kills the cambium all the way around the twig, branch, or trunk (33). Sprouts develop from a burl-like tissue at the base of the tree called the ‘root collar,’ which contains dormant embryos (39). Sprouts grow, become wounded and infected, and die, and the process starts all over again.

Cankers were first reported in the United States in 1904 on American chestnut trees (Castanea dentata [Marshall] Borkhausen) (Fig. 2) in New York City (32). None of the control attempts (chemical treatments, clearing and burning chestnut trees around infection sites) were successful (47). By 1926 the fungus was reported throughout the native range of American chestnut (Fig. 3), and a major forest tree had been reduced to a multiple-stemmed shrub (17). In 1912 the Plant Quarantine Act was passed to reduce the chances of such a catastrophe happening again (49).

Figure 2. An American chestnut tree (Castanea dentata [Marshall] Borkhausen) growing in Scotland, Connecticut in 1905. The tree was 83 feet tall, 27 inches in diameter, and 103 years old. (Click image for larger view).

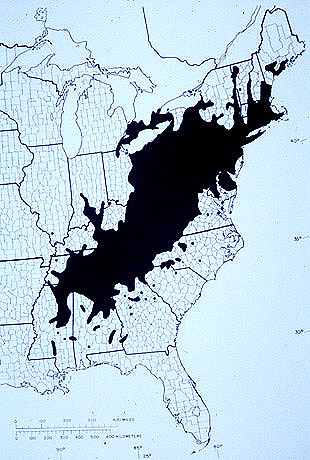

Figure 3. The natural range of American chestnut as presented by Saucier in 1973. (Click image for larger view).

The fungus was already wide spread in the north-eastern U.S. by 1904, but there were no reports of it south of Virginia (34). Metcalf and Collins suggested that Japanese chestnut trees (C. crenata Siebold and Zuccarini), which were first imported in 1876 (40), were the source of the pathogen (Fig. 4). A large number of grafted and seedling Japanese chestnuts were imported by 1900 (40), and it was clear that diseased nursery stock was the most important factor in the spread of chestnut blight to distant points. By 1900, many of the major mail-order nurseries offered Japanese (and European) chestnut trees for sale throughout the country (5).

Figure 4. A Japanese chestnut tree (Castanea crenata Siebold and Zuccarini) planted in Old Lyme, Connecticut in 1876 and photographed in 2000. (Click image for larger view).

In 1913, David Fairchild of the U.S.D.A. asked plant explorer Frank Meyer to look for the disease in Asia. Meyer reported in early June that he had found it in China, and sent samples (16). Shear and Stevens grew cultures from Meyer's samples, and in July they inoculated the Chinese fungus into American chestnut trees near Washington, D.C.; yet another introduction of the fungus into the forest (44). Rapid death of the sprouts confirmed that this similar-appearing fungus caused chestnut blight. Meyer found chestnut blight disease in Japan in 1915 (45), and we now know that Japanese trees and some Chinese trees have good resistance to the fungus, and although they may be infected they are rarely killed.

The blight fungus moves from tree to tree as spores on the feet, fur, and feathers of the many animals and insects that walk across the cankers (42,43,48). Sexual spores (ascospores) are shot into the air after rain storms in the fall and are another source of infection (9,41). The disease is now throughout the native range of American chestnut, and has moved into some of the places where trees were planted outside the range.

There has been little chance for resistance to evolve in American chestnut, since the sprouts that come up after trees are killed by chestnut blight disease are often killed before they become sexually mature. Since two flowering chestnut trees are needed for seed formation (they must be cross-pollinated), sexual reproduction has been drastically reduced. In the full sun of a clear-cut the chestnut blight cycle of sprouting-infection-death-sprouting takes about ten years, and in the understory of a forest the cycle may take 40 years (6,23). Griffin found that many chestnuts in two sites in Virginia did not sprout after dying from chestnut blight. Both of these sites had much higher nitrogen levels than sites with good survival, and the site with poorest survival had very high levels of calcium in the soil (24). In spite of this, in some places American chestnut root sprouts are still a major component of sub-canopy and shrub biomass (1,31,38,46).

A Parasite Imported to Control Chestnut Blight


Figure 5. Heavily callused chestnut blight cankers on American chestnut trees after treatment with hypovirulent strains of Cryphonectria parasitica. (Click image for larger view).


Figure 6. American chestnut trees with multiple hypovirulent cankers. The last treatments with the biocontrol strains in this Connecticut orchard was 19 years previous to this photograph. (Click image for larger view).

An imported parasite has given us a partial solution to the control of chestnut blight disease. Jene Grente reported in 1965 that ‘hypovirulent’ strains of the blight fungus from Italy lacked the ability to kill chestnut trees, and that inoculation of these strains into existing (lethal) cankers resulted in canker remission (18). Grente published several papers describing these strains with less than normal virulence, and began a program of active intervention when blight was found in France (19,20,21). Treatment of new cankers as they formed resulted in a successful ‘biological therapy’ of the disease. After four or five years of therapy, hypovirulent strains began to spread through the chestnut orchards of France, the trees began ‘healing’ over the blight cankers with bark-callus tissue, and a biological control was established (Fig. 5) (22).

We imported some of Grente’s hypovirulent strains in 1972, and were sent samples from swollen cankers from Michigan, Tennessee, Virginia, and West Virginia which yielded strains of the blight fungus that were also less able to kill chestnut trees. We found that Grente's strains, and the U.S. hypovirulent strains, contained dsRNA, and that blight strains with dsRNA could pass hypovirulence to lethal, American strains on American chestnut trees (14). After getting permission from Plant Quarantine, we used hypovirulent strains to treat cankers in orchards and forests, putting pieces of the hypovirulent strains growing on an agar medium into holes in the bark around killing cankers, and found that single introductions of hypovirulent strains into an area did little more than stop the expansion of the treated cankers (8). By treating every canker that we could reach for at least four years, on a large group of trees, we have established biological control of chestnut blight disease in American chestnuts in Connecticut (3,6). It works much better in an orchard situation, where the trees are close together, and the various carriers don’t have far to walk or fly to the next tree, than it does in a forest where the sprouts are often suppressed by shade and competition for nutrients, and are mixed in a collection of oaks, maples, and shrubs. However, even in forest plots this biological control can keep trees alive and flowering. The trunks are severely disfigured by the swollen cankers, and they would probably not be very useful for timber (Fig. 6) (6,25,30).

The transmission of hypovirulence from strain to strain of the fungus is restricted by a genetic system of vegetative incompatibility (Fig. 7) (2). Preliminary genetic studies by Huber were extended by Cortesi and Milgroom who estimate that there are six loci, each with two alleles in a system of heterogenic incompatibility which keep the strains of the fungus from fusing and passing hypovirulence (13,27). Milgroom has used this system and molecular markers to examine strains from populations of C. parasitica throughout the world (35). Similar studies in Europe have extended our knowledge of the populations of this fungus world wide (10).


Figure 7. Pairs of virulent and hypovirulent strains of Cryphonectria parasitica on Difco Potato Dextrose Agar. (Click image for larger view and more information).

Figure 8. Virus-like particles in a Cryphonectria parasitica cell. (Click image for larger view).

Recent work with the dsRNA found in hypovirulent strains has confirmed that this is the genetic material of a fungal virus (Fig. 8). Hillman and his co-workers have named it as a new genus (26). There is now a great deal of work being done with the viral genome and the effects of the genes on the fungus, and Nuss has recently reviewed this work (37). Several viruses have now been identified, and a mitochondrial DNA mutation which causes hypovirulence is also being studied (15,36). The viral genome has been inserted into the fungal genome, producing a stable recombinant which produces viral particles into the cytoplasm (12). This construct allows production of ascospores with the viral genome (7).

Breeding Programs

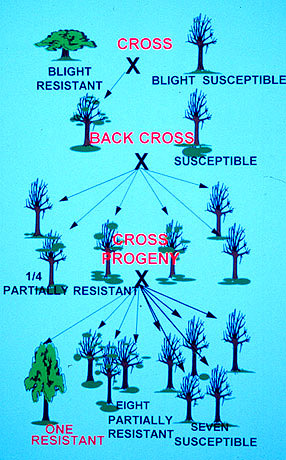

Figure 9. Crossing plan used by The Connecticut Agricultural Experiment Station and The American Chestnut Foundation for producing chestnut trees with American form and Asian blight resistance. This diagram is based on the assumption that there are two genes in Asian chestnuts responsible for blight resistance. (Click image for larger view).

Our breeding plan was first based simply on making hybrids of resistant Asian trees with susceptible American trees and testing the hybrids for resistance to chestnut blight (4,29). When it became clear that at least two genes were responsible for this resistance, we began a back-cross breeding system based on the plan of Charles Burnham (11). Resistant Asian trees are crossed with susceptible American trees, and the partially resistant hybrids are crossed to American trees again. One out of four of the progeny from these crosses have one copy of both resistance genes (giving them partial resistance), and these are crossed again to American. This repeated back-crossing increases the percentage of American genes in the hybrids, and selecting for partial resistance insures passage of the resistance genes. A final cross of two trees with partial resistance should result in one of sixteen trees having two copies of both resistance genes, which will make them fully resistant to the chestnut blight fungus (Fig. 9).

The breeding work has been greatly helped by a genetic map prepared by Kubisiak (28). He has RAPD markers for the chromosomal regions associated with resistance to chestnut blight, which will make selection much easier. Trees of two kinds are being chosen: for timber and for nut production, both with resistance to chestnut blight.

Figure 10. Pure stand of American chestnut trees in Connecticut in 1905. After clear-cutting (90 years prior to this photograph), the chestnuts out-competed all other woody species and grew back as a monoculture. (Click image for larger veiw).

At the very least, we will be able to maintain American trees as fruiting populations. Then if we plant our new resistant hybrids out into these plots, they will cross with native trees, incorporating the enormous genetic diversity that still exists in the forest. The first generation offspring will be intermediate in resistance, but in subsequent generations trees with full resistance will be produced. These will be well adapted to all the regions of the country where such plantings have been made, and should compete well with the additional help of biological control by hypovirulence. The hope is that chestnut trees may again become a usable timber resource in the forests of the world
(Fig. 10).
